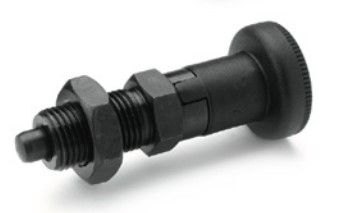

M6 BLACKENED STEEL INDEXING PLUNGER WITH PLASTIC KNOB & LOCK NUT (WITH REST POSITION)

Stock Code:
GN61716AK
Price:
$30.24 Inc GST
EA
Make an Enquiry

Description

INDEXING PLUNGERS GN 617.1 WITH REST POSITION ARE USED FOR SUCH APPLICATIONS WHERE THE PLUNGER HAS TO STAY IN ITS RETRACTED POSITION. TO ACHIEVE THIS, THE KNOB IS ROTATED BY 90° DEGREES AFTER BEING RETRACTED.

Details

  • Size:
    M6
  • Type:
    INDEXING
  • Specifications:
    d1 = M6, d2 = M12 x 1.5, d3 = 25MM, e = 16.2MM, l1 = 61MM, l2 = 6MM, l3 = 20MM, l4 = 6MM, l5 = 17MM, A/F = 14MM, SPRING LOAD IN N - INITIAL = 9MM, SPRING LOAD IN N - END = 24MM
